KG057QV1CA-G020W Kyocera 5.7 inch Outline 144×104.8×13.2 mm Surface Glare (Haze 0%) Frequency 75Hz

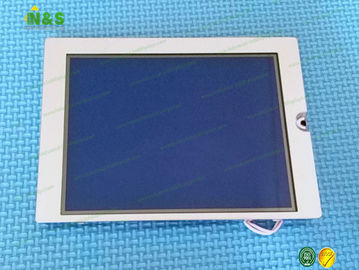

Gambar besar : KG057QV1CA-G020W Kyocera 5.7 inch Outline 144×104.8×13.2 mm Surface Glare (Haze 0%) Frequency 75Hz

Detail produk:

Place of Origin:	KOREA
Nama merek:	Kyocera
Sertifikasi:	ISO9001
Model Number:	KG057QV1CA-G020W

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 Piece
Packaging Details:	Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time:	1-3 Working Days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	500PCS/DAY

Kontak

KG057QV1CA-G020W Kyocera 5.7 inch Outline 144×104.8×13.2 mm Surface Glare (Haze 0%) Frequency 75Hz

Deskripsi

Panel Size:	5.7 inch	Resolution:	320×240
Outline:	144×104.8×13.2 mm	Surface:	Glare (Haze 0%)
Contrast Ratio:	4:1 (Typ.)	Frequency:	75Hz
Cahaya Tinggi:	industrial touch screen display , industrial lcd screen

KG057QV1CA-G020W Kyocera 5.7 inch Outline 144×104.8×13.2 mm Surface Glare (Haze 0%) Frequency 75Hz

KG057QV1CA-G020W Basic Information

Panel Model	KG057QV1CA-G020W
Panel Brand	Kyocera
Descrition	STN-LCD ,5.7 inch, 320×240
Panel Type	STN-LCD

KG057QV1CA-G020W Mechanical Features

Dot Resolution	320×240 (QVGA)
Pixel Configuration	Rectangle
Pixel Density	70 PPI
Aspect Ratio	4:3 (H:V)
Form Factor	Flat Rectangle Display
Dot Pitch	0.360×0.360 mm (H×V)
Pixel Pitch	0.360×0.360 mm (H×V)
Weight	175g
Surface	Glare (Haze 0%)
Active Area	115.18×86.38 mm (H×V)
Bezel Area	119.4×90.6 mm (H×V)
Outline Dimension	144×104.8 mm (H×V)
Outline Depth	9.0/13.2 (Typ./Max.) mm
Holes & Brackets	Rear mounting poles (4-Φ2.6)
Landscape or Portrait	Landscape type
Touch Panel	Without

KG057QV1CA-G020W Optical Features

Display Mode	STN, Blue mode (Negative), Transmissive
Brightness	260 cd/m² (Typ.)
Contrast Ratio	4 : 1 (Typ.) (Transmissive)
Display Color	Monochrome ()
Response Time	380/120 (Typ.)(Tr/Td)
Viewing Angle	45/45/20/40 (Typ.)(CR≥2) (L/R/U/D)
White color Chromaticity	Wx:0.310; Wy:0.330
Sunlight Readable	N

Packaging & Delivery

Packaging Details:

Safey package

Plastic trays inside

2 layes of cartons

Fragile sign on top

Can be customize 3.5 inch spare parts auo used lcd panel

Delivery Detail: 1-3 Working Days

Why do you choose us?

• Quick response to clients' enquiries within 24hrs.

• More than 6-year experience in LCD screen field and professional team communication team.

•Value quality and long-term cooperation to reach win-win relationship.

Pls contact to us for more stock information: salespm@nselectronic.com.hk
