Mitsubishi AA121SL12 12.1 inch 800×600 Normally White Active Area 246×184.5 mm Surface Antiglare, Hard coating (3H)

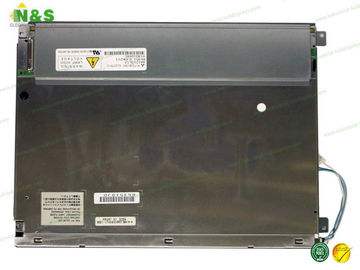

Gambar besar : Mitsubishi AA121SL12 12.1 inch 800×600 Normally White Active Area 246×184.5 mm Surface Antiglare, Hard coating (3H)

Detail produk:

Place of Origin:	KOREA
Nama merek:	Mitsubishi
Sertifikasi:	ISO9001
Model Number:	AA121SL12

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1
Packaging Details:	Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time:	1-3 Working Days
Payment Terms:	Western Union, T/T, MoneyGram, T/T
Supply Ability:	500PCS/DAY

Kontak

Mitsubishi AA121SL12 12.1 inch 800×600 Normally White Active Area 246×184.5 mm Surface Antiglare, Hard coating (3H)

Deskripsi

Panel Type:	a-Si TFT-LCD	Panel Size:	12.1 inch
Resolution:	800×600	Contrast Ratio:	500:1 (Typ.)
Frequency:	60Hz	Input Voltage:	3.3V (Typ.)
Cahaya Tinggi:	industrial touch screen display , industrial lcd screen

Mitsubishi AA121SL12 12.1 inch 800×600 Normally White Active Area 246×184.5 mm Surface Antiglare, Hard coating (3H)

AA121SL12 Basic Information

Panel Model	AA121SL12
Panel Brand	Mitsubishi
Descrition	a-Si TFT-LCD ,12.1 inch, 800×600
Panel Type	a-Si TFT-LCD
Operating Temperature	-20 ~ 70 °C
Storage Temperature	-30 ~ 80 °C

AA121SL12 Mechanical Features

Dot Resolution	800(RGB)×600 (SVGA)
Pixel Configuration	RGB Vertical Stripe
Pixel Density	82 PPI
Aspect Ratio	4:3 (H:V)
Form Factor	Flat Rectangle Display
Dot Pitch	0.1025×0.3075 mm (H×V)
Pixel Pitch	0.3075×0.3075 mm (H×V)
Weight	750g (Typ.)
Surface	Antiglare, Hard coating (3H)
Active Area	246×184.5 mm (H×V)
Bezel Area	249.0×187.5 mm (H×V)
Outline Dimension	280×210 mm (H×V)
Outline Depth	12.0 (Typ.) mm
Holes & Brackets	Face mounting holes (4-Φ3.5) on left bezel, right slugs
Landscape or Portrait	Landscape type
Touch Panel	Without

AA121SL12 Optical Features

Display Mode	TN, Normally White, Transmissive
Brightness	350 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (Transmissive)
Display Color	262K/16.7M (6-bit / 6-bit + Hi-FRC)
Response Time	10/30 (Typ.)(Tr/Td)
Viewing Angle	65/65/75/45 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction	6 o'clock
White color Chromaticity	Wx:0.313; Wy:0.329
White Variation	1.43 (Max.)(5 points)
Sunlight Readable	N

Our Advantage :

>>Quality Guarantee:

Our LCD Panels are 100% original and brand new!

Warranty : 12 months

You can enjoy the real panels directly from the LCD panel brand distributor.

>>Packing Guarantee:

All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!

>>Delivery Guarantee:

We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!

>>After-Sale service

We have many years good experience on display solution.

Any question, we will reply you within 12 hours.

AA121SL12 Electronics Feature

Vertical Frequency	60Hz
Reverse Scan	Yes (180°)

AA121SL12 Backlight System

Lamp Position	Edge light type
Lamp Type	CCFL
Lamp Amount	2 pcs
Lamp Shape	Straight
Lamp Life Time	50K(Min.) (Hours)
Lamp Replaceable	Replaceable
Lamp Voltage	540V (Typ.)
Lamp Current	3.0/6.0/7.0mA (Min./Typ./Max.)
Lamp Operating Frequency	30/60KHz (Min./Max.)
Lamp Startup Voltage	1000/1200/1290V (Min.)(Ta=+25/0/-20℃)
Interface Type	Connector
Lamp Driver Board	No
