Normally Black 10.1 inch BP101WX1-206 1280×800 with 216.96×135.6 mm Active Area Contrast Ratio 600:1 (Min.)

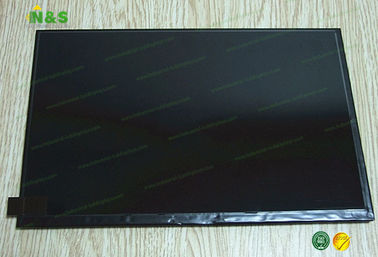

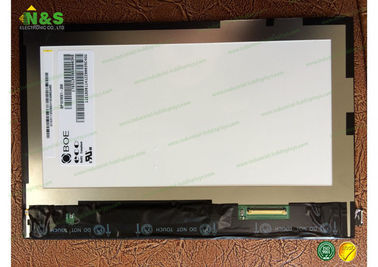

Gambar besar : Normally Black 10.1 inch BP101WX1-206 1280×800 with 216.96×135.6 mm Active Area Contrast Ratio 600:1 (Min.)

Detail produk:

Place of Origin:	KOREA
Nama merek:	BOE
Sertifikasi:	ISO9001
Model Number:	BP101WX1-206

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 Piece
Packaging Details:	Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time:	1-3 Working Days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	500PCS/DAY

Kontak

Normally Black 10.1 inch BP101WX1-206 1280×800 with 216.96×135.6 mm Active Area Contrast Ratio 600:1 (Min.)

Deskripsi

Panel Size:	10.1 inch	Resolution:	1280×800
Contrast Ratio:	600:1 (Min.)	Frequency:	60Hz
Input Voltage:	3.3V (Typ.)
Cahaya Tinggi:	industrial lcd screen , industrial lcd panel

Normally Black 10.1 inch BP101WX1-206 1280×800 with 216.96×135.6 mm Active Area Contrast Ratio 600:1 (Min.)

BP101WX1-206 Basic Information

Panel Model	BP101WX1-206
Panel Brand	BOE
Descrition	a-Si TFT-LCD ,10.1 inch, 1280×800
Panel Type	a-Si TFT-LCD
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

BP101WX1-206 Mechanical Features

Dot Resolution	1280(RGB)×800 (WXGA)
Pixel Configuration	RGB Vertical Stripe
Pixel Density	149 PPI
Aspect Ratio	16:10 (H:V)
Form Factor	Flat Rectangle Display
Dot Pitch	0.0565×0.1695 mm (H×V)
Pixel Pitch	0.1695×0.1695 mm (H×V)
Weight	150g (Max.)
Surface	Hard coating (3H), Antireflection
Active Area	216.96×135.6 mm (H×V)
Bezel Area	220.46×139.25 mm (H×V)
Outline Dimension	228.6×149.2 mm (H×V)
Outline Depth	2.39/4.59 (Typ./Max.) mm
Holes & Brackets	Without
Landscape or Portrait	Landscape type
Touch Panel	Without

Our Company Strength in LCD Screen Sourcing:

1.ISO9001 certificated, Factory Direct Supplied

2.Competitive Price and Short Lead-time

3. Professional Team with Rich Experiences in LCD screen international trade communication.

4. Small MOQ Support & Fast Response to Customers

5. Long Product Life Time

6. 1 Year warranty for our LCD screen replacements.

BP101WX1-206 Optical Features

Display Mode	ADS, Normally Black, Transmissive
Brightness	330 cd/m² (Typ.)
Contrast Ratio	600 : 1 (Min.) (Transmissive)
Display Color	16.7M (6-bit + Hi-FRC)
Color Gamut	50% NTSC (CIE1931)
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction	Symmetry
White color Chromaticity	Wx:0.313; Wy:0.329
White Variation	1.25 (Typ.)(5 points)
Sunlight Readable	N

Why do you choose us?

• Quick response to clients' enquiries within 24hrs.

• More than 6-year experience in LCD screen field and professional team communication team.

•Value quality and long-term cooperation to reach win-win relationship.

Below are our other LCD panels stock for your easy reference:

Panel Model	Brand	Size	Resolution
BA070WV4-200	BOE	7.0"	800×480
BP101WX7-300	BOE	10.1"	1280×800
BP070WS6-100	BOE	7.0"	1024×600
HV550WU2-202	BOE	55"	1920×1080
HVA40WV2-D00	BOE	4.0"	480×800
BT024QVMQ102	BOE	2.4"	240×320
BF043WVG-100	BOE	4.3"	480×800
BF040WVME502	BOE	4.0"	480×800
BF045WVQ-100	BOE	4.5"	480×854
BP039WV4-500	BOE	4.0"	480×800
BT028WQME601	BOE	2.8"	240×400
