CLAA070MA0ACW TFT LCD Module CPT 7.0 inch Surface Antiglare, Hard coating (3H) Response Time 20 (Typ.)(Tr+Td)

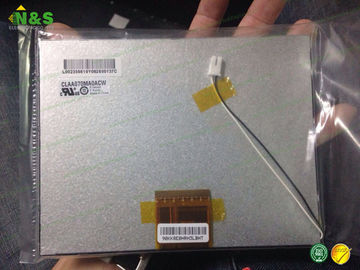

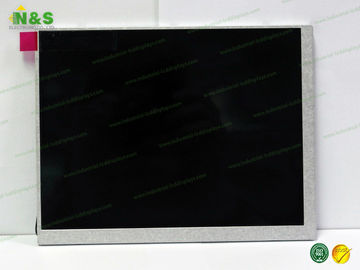

Gambar besar : CLAA070MA0ACW TFT LCD Module CPT 7.0 inch Surface Antiglare, Hard coating (3H) Response Time 20 (Typ.)(Tr+Td)

Detail produk:

Place of Origin:	KOREA
Nama merek:	CPT
Sertifikasi:	ISO9001
Model Number:	CLAA070MA0ACW

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1
Packaging Details:	Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time:	1-3 Working Days
Payment Terms:	Western Union, T/T, MoneyGram, T/T
Supply Ability:	500PCS/DAY

Kontak

CLAA070MA0ACW TFT LCD Module CPT 7.0 inch Surface Antiglare, Hard coating (3H) Response Time 20 (Typ.)(Tr+Td)

Deskripsi

Panel Type:	a-Si TFT-LCD	Panel Size:	7.0 inch
Resolution:	800×600	Contrast Ratio:	500:1 (Typ.)
Active Area:	141.6×106.2 mm	Response Time:	20 (Typ.)(Tr+Td)
Cahaya Tinggi:	industrial lcd screen , industrial lcd panel

CLAA070MA0ACW TFT LCD Module CPT 7.0 inch Surface Antiglare, Hard coating (3H) Response Time 20 (Typ.)(Tr+Td)

N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.

6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.

7) Feel free to contact to us if there is any problems during the shipment process.

Return and Refund:

(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.

(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.

(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.

Below are our other LCD panels stock for your easy reference:

Panel Model	Brand	Size	Resolution
CLAF045LA31 AX	CPT	4.5"	480×854
CLAF022GH21A0	CPT	2.2"	240×320
CLAF024G421 AX	CPT	2.4"	240×320
CLAF022GJ01 AX	CPT	2.2"	240×320
CLAF050JD01 00XC	CPT	5.0"	480×272
CLAF050JD01CX	CPT	5.0"	480×272
CLAF024G201C0	CPT	2.4"	480×234
CLAF024G421 AX	CPT	2.4"	240×320
CLAF022GJ01 AX	CPT	2.2"	240×320
CLAF050JD01 00XC	CPT	5.0"	480×272

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

CLAA070MA0ACW Basic Information

Panel Model	CLAA070MA0ACW
Panel Brand	CPT
Descrition	a-Si TFT-LCD ,7.0 inch, 800×600
Panel Type	a-Si TFT-LCD
Operating Temperature	-20 ~ 70 °C
Storage Temperature	-30 ~ 80 °C
Vibration Resistance	2.9G (28.4 m/s²)
Remarks	DE/SYNC mode selectable

CLAA070MA0ACW Mechanical Features

Dot Resolution	800(RGB)×600 (SVGA)
Pixel Configuration	RGB Vertical Stripe
Pixel Density	143 PPI
Aspect Ratio	4:3 (H:V)
Form Factor	Flat Rectangle Display
Dot Pitch	0.059×0.177 mm (H×V)
Pixel Pitch	0.177×0.177 mm (H×V)
Weight	165g (Typ.)
Surface	Antiglare, Hard coating (3H)
Active Area	141.6×106.2 mm (H×V)
Bezel Area	144.9×109.4 mm (H×V)
Outline Dimension	154×119.2 mm (H×V)
Outline Depth	5.1±0.3 mm
Holes & Brackets	Without
Landscape or Portrait	Landscape type
Touch Panel	Without

CLAA070MA0ACW Optical Features

Display Mode	TN, Normally White, Transmissive
Brightness	250 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (Transmissive)
Display Color	262K/16.2M (6-bit / 6-bit + FRC)
Response Time	20 (Typ.)(Tr+Td)
Viewing Angle	70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction	6 o'clock
White color Chromaticity	Wx:0.313; Wy:0.329
White Variation	1.33/1.43 (Typ./Max.)(9 points)
Sunlight Readable	N
