CLAA089NA0BCW TFT LCD Module CPT 8.9 inch Contrast Ratio 400:1 (Typ.) Input Voltage 3.3V (Typ.) new and original

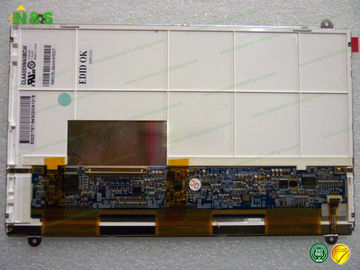

Gambar besar : CLAA089NA0BCW TFT LCD Module CPT 8.9 inch Contrast Ratio 400:1 (Typ.) Input Voltage 3.3V (Typ.) new and original

Detail produk:

Place of Origin:	KOREA
Nama merek:	CPT
Sertifikasi:	ISO9001
Model Number:	CLAA089NA0BCW

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1
Packaging Details:	Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time:	1-3 Working Days
Payment Terms:	Western Union, T/T, MoneyGram, T/T
Supply Ability:	500PCS/DAY

Kontak

CLAA089NA0BCW TFT LCD Module CPT 8.9 inch Contrast Ratio 400:1 (Typ.) Input Voltage 3.3V (Typ.) new and original

Deskripsi

Panel Type:	a-Si TFT-LCD	Panel Size:	8.9 inch
Resolution:	1024×600	Contrast Ratio:	400:1 (Typ.)
Display Colors:	262K (6-bit)	Frequency:	60Hz
Cahaya Tinggi:	industrial lcd screen , industrial lcd panel

CLAA089NA0BCW TFT LCD Module CPT 8.9 inch Contrast Ratio 400:1 (Typ.) Input Voltage 3.3V (Typ.) new and original

N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.

6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.

7) Feel free to contact to us if there is any problems during the shipment process.

Return and Refund:

(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.

(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.

(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.

Below are our other LCD panels stock for your easy reference:

Panel Model	Brand	Size	Resolution
CLAF050WE41 TXX	CPT	5.0"	720×1280
CLAG040LM01	CPT	4.0"	480×800
CLAN050LH21 1XB	CPT	5.0"	540×960
CLAG045LA01 AX	CPT	4.5"	480×854
CLAF035HF21 AX	CPT	3.5"	320×480
CLAF050LF31	CPT	5.0"	480×800
CLAN050LH63 XB	CPT	5.0"	540×960
CLAG050LM01 AX	CPT	5.0"	480×854
CLAG040LJ311 AXA	CPT	4.0"	480×800
CLAN045WB41 2XE	CPT	4.5"	720×1280

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

CLAA089NA0BCW Basic Information

Panel Model	CLAA089NA0BCW
Panel Brand	CPT
Descrition	a-Si TFT-LCD ,8.9 inch, 1024×600
Panel Type	a-Si TFT-LCD
Operating Temperature	-20 ~ 70 °C
Storage Temperature	-30 ~ 80 °C

CLAA089NA0BCW Mechanical Features

Dot Resolution	1024(RGB)×600 (WSVGA)
Pixel Configuration	RGB Vertical Stripe
Pixel Density	133 PPI
Aspect Ratio	17:10 (H:V)
Form Factor	Flat Rectangle Display
Dot Pitch	0.0635×0.1905 mm (H×V)
Pixel Pitch	0.1905×0.1905 mm (H×V)
Weight	191g (Typ.)
Surface	Antiglare, Hard coating (3H)
Active Area	195.072×114.3 mm (H×V)
Bezel Area	198.5×117.7 mm (H×V)
Outline Dimension	210×139.8 mm (H×V)
Outline Depth	5.2±0.3 mm
Holes & Brackets	Side mounting holes (4-M2) on left, right bezel; Face mounting holes (4-Φ2.2) on top, down slugs
Landscape or Portrait	Landscape type
Touch Panel	Without

CLAA089NA0BCW Optical Features

Display Mode	TN, Normally White, Transmissive
Brightness	220 cd/m² (Typ.)
Contrast Ratio	400 : 1 (Typ.) (Transmissive)
Display Color	262K (6-bit)
Response Time	20 (Typ.)(Tr+Td)
Viewing Angle	70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction	6 o'clock
White color Chromaticity	Wx:0.313; Wy:0.329
White Variation	1.25/1.43 (Typ./max.)(9 points)
Sunlight Readable	N
