Resolution 1280×800 10.1 inch HSD101PWW1-G10 TFT LCD Module HannStar Outline 227.42×147.69×4.25 mm new and original

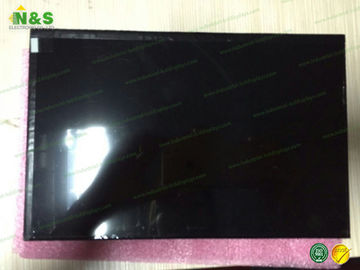

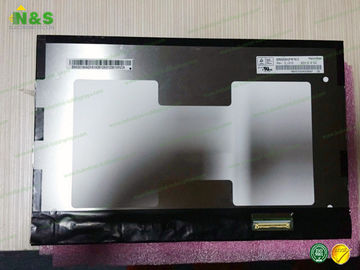

Gambar besar : Resolution 1280×800 10.1 inch HSD101PWW1-G10 TFT LCD Module HannStar Outline 227.42×147.69×4.25 mm new and original

Detail produk:

Place of Origin:	KOREA
Nama merek:	HannStar
Sertifikasi:	ISO9001
Model Number:	HSD101PWW1-G10

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1
Packaging Details:	Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time:	1-3 Working Days
Payment Terms:	Western Union, T/T, MoneyGram, T/T
Supply Ability:	500PCS/DAY

Kontak

Resolution 1280×800 10.1 inch HSD101PWW1-G10 TFT LCD Module HannStar Outline 227.42×147.69×4.25 mm new and original

Deskripsi

Panel Type:	a-Si TFT-LCD	Panel Size:	10.1 inch
Resolution:	1280×800	Contrast Ratio:	800:1 (Typ.)
Active Area:	216.96×135.6 mm	Outline:	227.42×147.69×4.25 mm
Cahaya Tinggi:	industrial touch screen display , industrial lcd screen

Resolution 1280×800 10.1 inch HSD101PWW1-G10 TFT LCD Module HannStar Outline 227.42×147.69×4.25 mm new and original

FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.

Below are our other LCD panels stock for your easy reference:

Panel Model	Brand	Size	Resolution
CLAF047LC41 TXX	CPT	4.7"	540×960
CLAG040LQ11	CPT	4.0"	480×800
C047SWA1-0	IVO	4.7"	720×1280
LC420DUJ-SGE3	LG Display	42"	1920×1080
HSD050BMW2-D00	HannStar	5.0"	540×960
C101NWWB-0	IVO	10.1"	1280×800
HSD035F8W2-A00	HannStar	3.5"	480×854
CLAG045LJ11	CPT	4.5"	480×854
CLAD027GJ01 00XD	CPT	2.7"	320×240

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

HSD101PWW1-G10 Basic Information

Panel Model	HSD101PWW1-G10
Panel Brand	HannStar
Descrition	a-Si TFT-LCD ,10.1 inch, 1280×800
Panel Type	a-Si TFT-LCD
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

HSD101PWW1-G10 Mechanical Features

Dot Resolution	1280(RGB)×800 (WXGA)
Pixel Configuration	RGB Vertical Stripe
Pixel Density	149 PPI
Aspect Ratio	16:10 (H:V)
Form Factor	Flat Rectangle Display
Dot Pitch	0.0565×0.1695 mm (H×V)
Pixel Pitch	0.1695×0.1695 mm (H×V)
Weight	135g (Max.)
Surface	Hard coating
Active Area	216.96×135.6 mm (H×V)
Outline Dimension	227.42×147.69 mm (H×V)
Outline Depth	2.15/4.25 (Typ./Max.) mm
Holes & Brackets	Without
Landscape or Portrait	Landscape type
Touch Panel	Without

HSD101PWW1-G10 Optical Features

Display Mode	HS-IPS, Normally Black, Transmissive
Brightness	350 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (Transmissive)
Display Color	262K (6-bit)
Color Gamut	45% NTSC (CIE1931)
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction	Symmetry
White color Chromaticity	Wx:0.313; Wy:0.329
White Variation	1.25/1.50 (Max.)(5/13 points)
Sunlight Readable	N
