8.9 inch N089L6-L03 TFT LCD Module CMO with 195.072×113.4 mm Active Area Surface Antiglare, Hard coating (3H)

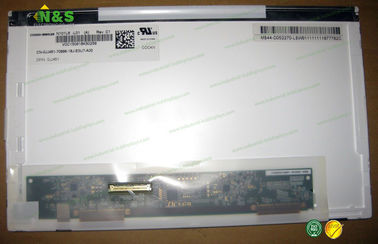

Gambar besar : 8.9 inch N089L6-L03 TFT LCD Module CMO with 195.072×113.4 mm Active Area Surface Antiglare, Hard coating (3H)

Detail produk:

Place of Origin:	KOREA
Nama merek:	CMO
Sertifikasi:	ISO9001
Model Number:	N089L6-L03

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1
Packaging Details:	Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time:	1-3 Working Days
Payment Terms:	Western Union, T/T, MoneyGram, T/T
Supply Ability:	500PCS/DAY

Kontak

8.9 inch N089L6-L03 TFT LCD Module CMO with 195.072×113.4 mm Active Area Surface Antiglare, Hard coating (3H)

Deskripsi

Panel Type:	a-Si TFT-LCD	Panel Size:	8.9 inch
Resolution:	1024×600	Display Mode:	TN, Normally White, Transmissive
Active Area:	195.072×113.4 mm	Outline:	213.36×129.55×4.9 mm
Cahaya Tinggi:	industrial touch screen display , industrial lcd screen

8.9 inch N089L6-L03 TFT LCD Module CMO with 195.072×113.4 mm Active Area Surface Antiglare, Hard coating (3H)

What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.

Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.

Below are our other LCD panels stock for your easy reference:

Panel Model	Brand	Size	Resolution
TV070WSU-N40	BOE	7.0"	600×1024
LS320PUWTH	PANDA	31.5"	1366×768
TT4851D01-4	CSOT	49"	3840×2160
ST4761B01-6	CSOT	48"	1920×1080
LC420EGY-SGM1	LG Display	42"	3840×2160
H466TAN01.4	AUO	4.7"	720×1280
BF045WVE-400	BOE	4.5"	480×854
LC430DUY-SHA1	LG Display	43"	1920×1080
HSD047BMW1-D00	HannStar	4.7"	540×960
HSD070FMW1-A00	HannStar	7.0"	540×960

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

N089L6-L03 Basic Information

Panel Model	N089L6-L03
Panel Brand	CMO
Descrition	a-Si TFT-LCD ,8.9 inch, 1024×600
Panel Type	a-Si TFT-LCD
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

N089L6-L03 Mechanical Features

Dot Resolution	1024(RGB)×600 (WSVGA)
Pixel Configuration	RGB Vertical Stripe
Pixel Density	133 PPI
Aspect Ratio	17:10 (H:V)
Form Factor	Flat Rectangle Display
Dot Pitch	0.0635×0.1890 mm (H×V)
Pixel Pitch	0.1905×0.1890 mm (H×V)
Weight	145/155g (Typ./Max.)
Surface	Antiglare, Hard coating (3H)
Active Area	195.072×113.4 mm (H×V)
Bezel Area	198.27×116.6 mm (H×V)
Outline Dimension	213.36×129.55 mm (H×V)
Outline Depth	4.6/4.9 (Typ./Max.) mm
Holes & Brackets	Side mounting holes (4-M2) on left, right bezel
Landscape or Portrait	Landscape type
Touch Panel	Without

N089L6-L03 Optical Features

Display Mode	TN, Normally White, Transmissive
Brightness	200 cd/m² (Typ.)
Contrast Ratio	400 : 1 (Typ.) (Transmissive)
Display Color	262K (6-bit)
Response Time	3/7 (Typ.)(Tr/Td)
Viewing Angle	70/70/60/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction	6 o'clock
White color Chromaticity	Wx:0.313; Wy:0.329
White Variation	1.40 (Max.)(5 points)
Sunlight Readable	N
