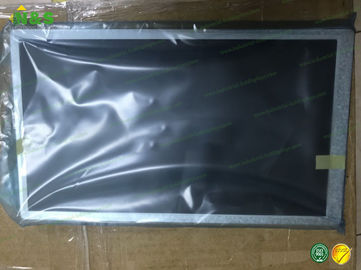

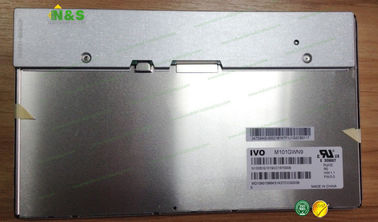

Normally White M101GWN9 R0 TFT LCD Module IVO 10.1 inch 1024×600 resolution Active Area 222.72×125.28 mm
M101GWN9 R0 Basic Information
| Panel Model |
M101GWN9 R0 |
| Panel Brand |
IVO |
| Descrition |
a-Si TFT-LCD ,10.1 inch, 1024×600 |
| Panel Type |
a-Si TFT-LCD |
| Operating Temperature |
-30 ~ 85 °C |
| Storage Temperature |
-30 ~ 85 °C |
M101GWN9 R0 Mechanical Features
| Dot Resolution |
1024(RGB)×600 (WSVGA) |
| Pixel Configuration |
RGB Vertical Stripe |
| Pixel Density |
117 PPI |
| Aspect Ratio |
16:9 (H:V) |
| Form Factor |
Flat Rectangle Display |
| Dot Pitch |
0.0725×0.2088 mm (H×V) |
| Pixel Pitch |
0.2175×0.2088 mm (H×V) |
| Weight |
440/440g (Typ./Max.) |
| Surface |
Antiglare, Hard coating (3H) |
| Active Area |
222.72×125.28 mm (H×V) |
| Bezel Area |
225.72×128.28 mm (H×V) |
| Outline Dimension |
244×143 mm (H×V) |
| Outline Depth |
7.2/12.9 (Typ./Max.) mm |
| Landscape or Portrait |
Landscape type |
| Touch Panel |
Without |
M101GWN9 R0 Optical Features
| Display Mode |
TN, Normally White, Transmissive |
| Brightness |
500 cd/m² (Typ.) |
| Contrast Ratio |
500 : 1 (Typ.) (Transmissive) |
| Display Color |
262K/16.7M (6-bit / 6-bit + Dithering) |
| Color Gamut |
45% NTSC (CIE1931) |
| Response Time |
16 (Typ.)(Tr+Td) |
| Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity |
Wx:0.305; Wy:0.325 |
| White Variation |
1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable |
N |
