Normally White M101GWN9 R2 TFT LCD Module IVO 10.1 inch 1024×600 resolution Surface Antiglare, Hard coating (3H)

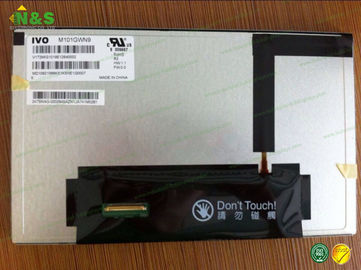

Gambar besar : Normally White M101GWN9 R2 TFT LCD Module IVO 10.1 inch 1024×600 resolution Surface Antiglare, Hard coating (3H)

Detail produk:

Place of Origin:	KOREA
Nama merek:	IVO
Sertifikasi:	ISO9001
Model Number:	M101GWN9 R2

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1
Packaging Details:	Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time:	1-3 Working Days
Payment Terms:	Western Union, T/T, MoneyGram, T/T
Supply Ability:	500PCS/DAY

Kontak

Normally White M101GWN9 R2 TFT LCD Module IVO 10.1 inch 1024×600 resolution Surface Antiglare, Hard coating (3H)

Deskripsi

Panel Type:	a-Si TFT-LCD	Panel Size:	10.1 inch
Resolution:	1024×600	Active Area:	222.72×125.28 mm
Surface:	Antiglare, Hard coating (3H)	Contrast Ratio:	500:1 (Typ.)
Cahaya Tinggi:	industrial touch screen display , industrial lcd panel

Normally White M101GWN9 R2 TFT LCD Module IVO 10.1 inch 1024×600 resolution Surface Antiglare, Hard coating (3H)

Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed

M101GWN9 R2 Basic Information

Panel Model	M101GWN9 R2
Panel Brand	IVO
Descrition	a-Si TFT-LCD ,10.1 inch, 1024×600
Panel Type	a-Si TFT-LCD
Operating Temperature	-20 ~ 70 °C
Storage Temperature	-30 ~ 80 °C

M101GWN9 R2 Mechanical Features

Dot Resolution	1024(RGB)×600 (WSVGA)
Pixel Configuration	RGB Vertical Stripe
Pixel Density	117 PPI
Aspect Ratio	16:9 (H:V)
Form Factor	Flat Rectangle Display
Dot Pitch	0.0725×0.2088 mm (H×V)
Pixel Pitch	0.2175×0.2088 mm (H×V)
Weight	310g (Typ.)
Surface	Antiglare, Hard coating (3H)
Active Area	222.72×125.28 mm (H×V)
Bezel Area	225.72×128.28 mm (H×V)
Outline Dimension	235×143 mm (H×V)
Outline Depth	5.5/8.04 (Typ./Max.) mm
Holes & Brackets	Side mounting holes (6-M2) on left, right bezel
Landscape or Portrait	Landscape type
Touch Panel	Without

M101GWN9 R2 Optical Features

Display Mode	TN, Normally White, Transmissive
Brightness	350 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (Transmissive)
Display Color	16.7M (6-bit + Hi-FRC)
Color Gamut	45% NTSC (CIE1931)
Response Time	6/10 (Typ.)(Tr/Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity	Wx:0.305; Wy:0.325
White Variation	1.25/1.33 (Typ./Max.)(9 points)
Sunlight Readable	N

FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.

Below are our other LCD panels stock for your easy reference:

Panel Model	Brand	Size	Resolution
C054SWZ5	IVO	5.4"	540×960
C116NWR5-0	IVO	11.6"	1366×768
C024SN21-1	IVO	2.4"	240×320
C055SWF5-0	IVO	5.5"	1080×1920
C050SWA6-3	IVO	5.0"	720×1280
C050SWYG-0	IVO	5.0"	480×854
C050SWYD-2	IVO	5.0"	480×854
C054SWN1-2	IVO	5.4"	540×960
C050SWAF-0	IVO	5.0"	720×1280
C050SWZ3-1	IVO	5.0"	540×960
C017SN81-0	IVO	1.8"	128×160

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
