Normally White M104GNX1 R1 10.4 inch 1024×768 Resolution TFT LCD Display Screen Input Voltage 3.3V (Typ.)

Gambar besar : Normally White M104GNX1 R1 10.4 inch 1024×768 Resolution TFT LCD Display Screen Input Voltage 3.3V (Typ.)

Detail produk:

Place of Origin:	KOREA
Nama merek:	IVO
Sertifikasi:	ISO9001
Model Number:	M104GNX1 R1

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1
Packaging Details:	Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time:	1-3 Working Days
Payment Terms:	Western Union, T/T, MoneyGram, T/T
Supply Ability:	500PCS/DAY

Kontak

Normally White M104GNX1 R1 10.4 inch 1024×768 Resolution TFT LCD Display Screen Input Voltage 3.3V (Typ.)

Deskripsi

Panel Model:	M104GNX1 R1	Panel Size:	10.4 inch
Resolution:	1024×768	Active Area:	211.2×158.4 mm
Surface:	Antiglare, Hard coating (3H)	Input Voltage:	3.3V (Typ.)
Cahaya Tinggi:	industrial lcd screen , industrial lcd panel

Normally White M104GNX1 R1 10.4 inch 1024×768 Resolution TFT LCD Display Screen Input Voltage 3.3V (Typ.)

M104GNX1 R1 Basic Information

Panel Model	M104GNX1 R1
Panel Brand	IVO
Descrition	a-Si TFT-LCD ,10.4 inch, 1024×768
Panel Type	a-Si TFT-LCD
Model Alias	M104GNX1-R1
Operating Temperature	-20 ~ 70 °C
Storage Temperature	-30 ~ 80 °C

M104GNX1 R1 Mechanical Features

Dot Resolution	1024(RGB)×768 (XGA)
Pixel Configuration	RGB Vertical Stripe
Pixel Density	123 PPI
Aspect Ratio	4:3 (H:V)
Form Factor	Flat Rectangle Display
Dot Pitch	0.06875×0.20625 mm (H×V)
Pixel Pitch	0.20625×0.20625 mm (H×V)
Weight	290g (Max.)
Surface	Antiglare, Hard coating (3H)
Active Area	211.2×158.4 mm (H×V)
Bezel Area	214.8×162.0 mm (H×V)
Outline Dimension	236×176.9 mm (H×V)
Outline Depth	5.7±0.3 mm
Holes & Brackets	Face mounting holes (4 pcs) on left, right bezel
Landscape or Portrait	Landscape type
Touch Panel	Without

Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.

Excellent service on before-sale, on-sale and after-sale

1. We provide one year warranty, will provide the after-sale service for you if any quality problems.

2.Your inquiry related to our products or prices will be replied in 24 hours.

3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.

Here comes our other LCD panels stock for your easy reference:

Panel Model	Brand	Size	Resolution
C035SWN1-4	IVO	3.5"	320×480
C090NWP1 R0	IVO	9.0"	800×480
C054SWN1-1	IVO	5.4"	540×960
C045SWY1-1	IVO	4.5"	480×854
C039SWN3-0	IVO	3.9"	272×480
C039SWN1-0	IVO	4.0"	320×480
C090SWT3-0	IVO	9.0"	1024×600
G046SWN1 R1	IVO	4.6"	480×854
C052SWP1-3	IVO	5.2"	480×800
C054SWN1-0	IVO	5.4"	540×960
C078SNX1-0	IVO	7.9"	768×1024

Pls contact to us for more stock information: salespm@nselectronic.com.hk

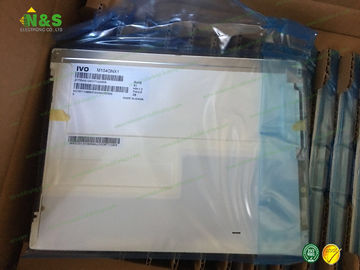

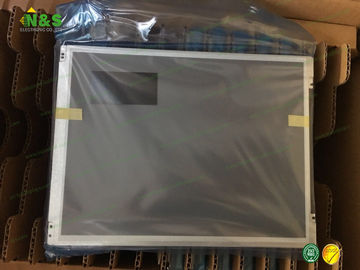

M104GNX1 R1 Picture

Normally White M104GNX1 R1 10.4 inch 1024×768 Resolution TFT LCD Display Screen Input Voltage 3.3V (Typ.) 0
