New and original 3.8 inch Normally White TM038QV-67A03 TFT LCD Module TORISAN Active Area 76.8×57.6 mm

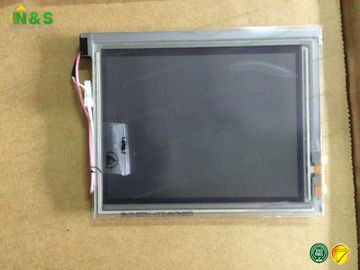

Gambar besar : New and original 3.8 inch Normally White TM038QV-67A03 TFT LCD Module TORISAN Active Area 76.8×57.6 mm

Detail produk:

Place of Origin:	KOREA
Nama merek:	TORISAN
Sertifikasi:	ISO9001
Model Number:	TM038QV-67A03

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1
Packaging Details:	Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time:	1-3 Working Days
Payment Terms:	Western Union, T/T, MoneyGram, T/T
Supply Ability:	500PCS/DAY

Kontak

New and original 3.8 inch Normally White TM038QV-67A03 TFT LCD Module TORISAN Active Area 76.8×57.6 mm

Deskripsi

Panel Type:	a-Si TFT-LCD	Panel Size:	3.8 inch
Resolution:	320×240	Active Area:	76.8×57.6 mm
Display Colors:	262K (6-bit)	Outline:	96.8×73 mm
Cahaya Tinggi:	industrial lcd screen , industrial lcd panel

New and original 3.8 inch Normally White TM038QV-67A03 TFT LCD Module TORISAN Active Area 76.8×57.6 mm

Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

2. Great quality and high purity
Good quality is one secret for our success.

3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.

24/7 is available. Try our best to solve various problems customers encountered!

Excellent service on before-sale, on-sale and after-sale

1. We provide one year warranty, will provide the after-sale service for you if any quality problems.

2.Your inquiry related to our products or prices will be replied in 24 hours.

3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.

Here comes our other LCD panels stock for your easy reference:

Panel Model	Brand	Size	Resolution
C060SWA3 R0	IVO	6.0"	720×1280
C080SWW3-0	IVO	8.0"	800×1280
CLAP042JB01 DW	CPT	4.2"	480×272
BP096WX7-100	BOE	9.6"	800×1280
V500HK3-PS1	Innolux	50"	1920×1080
ST3151A04-7	CSOT	31.5"	1366×768
HSD0702FW1-A00	HannStar	7.0"	1024×600
TPF0702002N	JDI	7.0"	1200×1920
LQ156D1JX02	SHARP	15.6"	3840×2160
BF050QHE-400	BOE	5.0"	540×960

Pls contact to us for more stock information: salespm@nselectronic.com.hk

TM038QV-67A03 Basic Information

Panel Model	TM038QV-67A03
Panel Brand	TORISAN
Descrition	a-Si TFT-LCD ,3.8 inch, 320×240
Panel Type	a-Si TFT-LCD
Operating Temperature	0 ~ 50 °C
Storage Temperature	-30 ~ 60 °C

TM038QV-67A03 Mechanical Features

Dot Resolution	320(RGB)×240 (QVGA)
Pixel Configuration	RGB Vertical Stripe
Pixel Density	105 PPI
Aspect Ratio	4:3 (H:V)
Form Factor	Flat Rectangle Display
Dot Pitch	0.080×0.240 mm (H×V)
Pixel Pitch	0.240×0.240 mm (H×V)
Weight	65g (Typ.)
Active Area	76.8×57.6 mm (H×V)
Bezel Area	80.0×62.2 mm (H×V)
Outline Dimension	96.8×73 mm (H×V)
Outline Depth	5.1 (Max.) mm
Landscape or Portrait	Landscape type
Touch Panel	Embeded (4-wire Resistive)

TM038QV-67A03 Optical Features

Display Mode	TN, Normally White, Reflective
Display Color	262K (6-bit)
Response Time	10/10 (Typ.)(Tr/Td)
Viewing Angle	60/60/50/50 (Typ.)(CR≥2) (L/R/U/D)
White Variation	1.60 (Max.)(9 points)
Sunlight Readable	Y
