Normally White LTM084P363 TFT LCD Module TOSHIBA 8.4 inch Active Area 170.4×127.8 mm Outline 199.5×149.5 mm

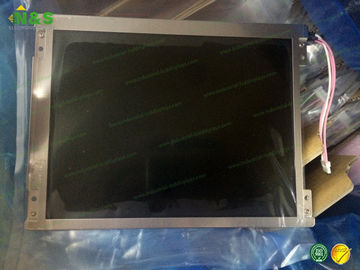

Gambar besar : Normally White LTM084P363 TFT LCD Module TOSHIBA 8.4 inch Active Area 170.4×127.8 mm Outline 199.5×149.5 mm

Detail produk:

Place of Origin:	KOREA
Nama merek:	TOSHIBA
Sertifikasi:	ISO9001
Model Number:	LTM084P363

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1

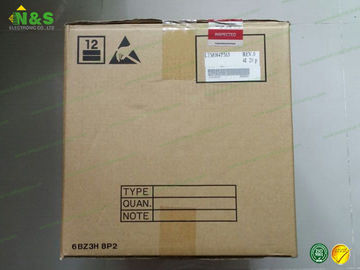

Packaging Details:	Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time:	1-3 Working Days
Payment Terms:	Western Union, T/T, MoneyGram, T/T
Supply Ability:	500PCS/DAY

Kontak

Normally White LTM084P363 TFT LCD Module TOSHIBA 8.4 inch Active Area 170.4×127.8 mm Outline 199.5×149.5 mm

Deskripsi

Panel Type:	a-Si TFT-LCD , LCM	Panel Size:	8.4 inch
Resolution:	800×600	Contrast Ratio:	250:1 (Typ.)
Active Area:	170.4×127.8 mm	Outline:	199.5×149.5 mm
Cahaya Tinggi:	industrial lcd screen , industrial lcd panel

Normally White LTM084P363 TFT LCD Module TOSHIBA 8.4 inch Active Area 170.4×127.8 mm Outline 199.5×149.5 mm

FAQ

1. Q: Where can I get the price?

A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.

2. Q: How can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality.

3. Q: What about the lead time for mass production?

A: It depends on your order quantity and the season you place the order.

4. Q: What are your terms of payment?

A: We accept T/T, Western Union, MoneyGram, PayPal.

Below are our other LCD panels stock for your easy reference:

Panel Model	Brand	Size	Resolution
LH450WX5-SH02	LG Display	4.5"	720×1280
LSC400HN02-W	Samsung	40"	1920×1080
HV320WHB-N06	BOE	31.5"	1366×768
LH500WX4-SH01	LG Display	5.0"	720×1280
LC470DUT-SEF2	LG Display	47"	1920×1080
P080DCE-3F0	Innolux	8.0"	800×1280
BP070WS7-500	BOE	7.0"	1024×600
PJ055IC-01A	Innolux	5.5"	1080×1920
TV070WVE-N10	BOE	7.0"	800×480

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

Quality Control:

1. Visual Inspection

Make sure No damage, No Scratches, No dusty, No light leakage.

2. Function Inspection

Make sure all functions are 100% tested ok

LTM084P363 Basic Information

Panel Model	LTM084P363
Panel Brand	TOSHIBA
Descrition	LTPS TFT-LCD ,8.4 inch, 800×600
Panel Type	LTPS TFT-LCD
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

LTM084P363 Mechanical Features

Dot Resolution	800(RGB)×600 (SVGA)
Pixel Configuration	RGB Vertical Stripe
Pixel Density	119 PPI
Aspect Ratio	4:3 (H:V)
Form Factor	Flat Rectangle Display
Dot Pitch	0.071×0.213 mm (H×V)
Pixel Pitch	0.213×0.213 mm (H×V)
Weight	395g (Typ.)
Active Area	170.4v127.8 mm (H×V)
Bezel Area	173.4×130.8 mm (H×V)
Outline Dimension	199.5×149.5 mm (H×V)
Outline Depth	12.0 (Max.) mm
Holes & Brackets	Face mounting holes (4-Φ3.4)
Landscape or Portrait	Landscape type
Touch Panel	Without

LTM084P363 Optical Features

Display Mode	TN, Normally White, Transmissive
Brightness	350 cd/m2 (Typ.)
Contrast Ratio	250 : 1 (Typ.) (Transmissive)
Display Color	262K (6-bit)
Response Time	50/50 (Max.)(Tr/Td)
Sunlight Readable	N
