Detail produk:
|
Panel Type: | a-Si TFT-LCD, LCM | Ukuran panel: | 5.0-inch |
---|---|---|---|
Resolusi: | 640 (RGB) × 480, VGA | Mode Tampilan: | TN, Biasanya Putih, Transmissive |
Aktif di Area: | 101,568 × 76,176 mm | garis besar: | 117,35 × 88,43 × 8,1 mm |
Cahaya Tinggi: | layar tft lcd,layar lcd innolux |

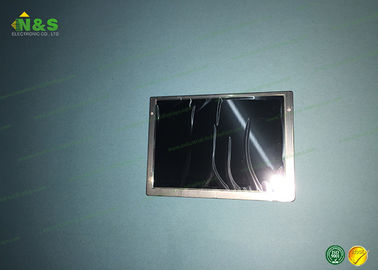

5.0 inci SJ050NA-08A Innolux LCD Panel Mitsubishi LCM 640 × 480 Biasanya Putih
Spesifikasi SJ050NA-08A
Ukuran Panel: | 5,0 inci |
Resolusi Dot: | 640 (RGB) × 480 (VGA) |
Pixel Configuration: | Garis Vertikal RGB |
Kerapatan piksel : | 160 PPI |
Rasio Aspek: | 4: 3 (H: V) |
Faktor Bentuk: | Tampilan Persegi Panjang Datar |
Dot Pitch: | 0,0529 × 0,1587 mm (H × V) |
Pitch Piksel: | 0,1587 × 0,1587 mm (H × V) |
Berat: | 75.6g (Typ.) |
Permukaan: | Anti silau |
Area Aktif: | 101,568 × 76,176 mm (H × V) |
Area Bingkai: | 102,57 × 77,18 mm (H × V) |
Dimensi Garis Besar: | 117.35 × 88.43 mm (H × V) |
Kedalaman Garis Besar: | 7,9 ± 0,2 mm |
Lubang & Kurung: | Lubang pemasangan wajah (4 pcs) di kiri, kanan, hingga siput |
Lanskap atau Potret: | Tipe lanskap |
Panel sentuh : | Tanpa |
Mode tampilan : | TN, Biasanya Putih, Transmissive |
Kecerahan: | 350 cd / m² (Typ.) |
Rasio Kontras: | 500: 1 (Typ.) (Transmissive) |
Warna Tampilan: | 262K (6-bit) |
Waktu merespon : | 10/15 (Biasa.) (Tr / Td) |
Sudut Pandang: | 65/65/45/65 (Biasa.) (CR≥10) (L / R / U / D) |
Kromatisitas warna putih: | Wx: 0,310; Wy: 0,330 |
Variasi Putih: | 1.33 / 1.43 (Typ./Max.)(9 poin) |
Sunlight Readable: | N |
Kemasan & pengiriman:
Informasi pengiriman:
Tim pengujian profesional kami akan menguji panel LCD PC demi pcs, untuk memastikan layar LCD yang dikirim keluar dengan kualitas yang baik.
Metode pengiriman:
Dengan Express: FedEx, DHL, EMS, TNT, UPS,
Dengan Logistik: Melalui udara
Waktu pengiriman:
Dari Senin hingga Sabtu, pukul 08.00-17.30
Alamat Pengiriman:
Jika dengan T / T, alamat pengiriman sebagai komunikasi.
Di bawah ini adalah stok panel LCD kami untuk referensi mudah Anda:
Model Panel | Merek | Ukuran | Resolusi |
P079ZCZ-3Z2 | Innolux | 7,9 " | 768 × 1024 |
M315DJJ-Q01 | Innolux | 31,5 " | 3840 × 2160 |
V320BJ6-Q01 | Innolux | 31,5 " | 1366 × 768 |
V650DK2-QS2 | Innolux | 65 " | 3840 × 2160 |
F055A15-6T1 | Innolux | 5,5 " | 720 × 1280 |
F050A19-601 | Innolux | 5,5 " | 720 × 1280 |
HE101IA-01R | Innolux | 10.1 " | 1280 × 800 |
Kami juga memiliki panel LCD industri lainnya, pls hubungi kami untuk informasi lebih lanjut: salespm@nselectronic.com.hk
