KG057QV1CA-G020W 5.7 inch resolution 320×240 Active Area 115.18×86.38 mm Surface Glare (Haze 0%)

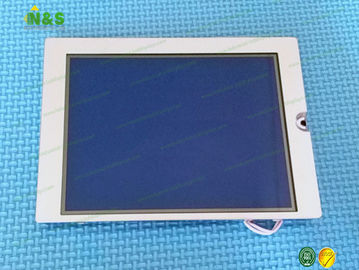

Gambar besar : KG057QV1CA-G020W 5.7 inch resolution 320×240 Active Area 115.18×86.38 mm Surface Glare (Haze 0%)

Detail produk:

Place of Origin:	Japan,Korea
Nama merek:	Kyocera
Sertifikasi:	ISO9001
Model Number:	KG057QV1CA-G020W

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 piece
Packaging Details:	Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time:	1-3 Working Days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	100 PCS PER DAY

Kontak

KG057QV1CA-G020W 5.7 inch resolution 320×240 Active Area 115.18×86.38 mm Surface Glare (Haze 0%)

Deskripsi

Panel Size:	5.7 inch	Resolution:	320×240
Panel Type:	STN-LCD	Active Area:	115.18×86.38 mm
Outline:	144×104.8×13.2 mm	Surface:	Glare (Haze 0%)
Frequency:	75Hz
Cahaya Tinggi:	industrial lcd screen , industrial lcd panel

KG057QV1CA-G020W 5.7 inch resolution 320×240 Active Area 115.18×86.38 mm Surface Glare (Haze 0%)

KG057QV1CA-G020W Basic Information

Panel Model	KG057QV1CA-G020W
Panel Brand	Kyocera
Descrition	STN-LCD ,5.7 inch, 320×240
Panel Type	STN-LCD

KG057QV1CA-G020W Mechanical Features

Dot Resolution	320×240 (QVGA)
Pixel Configuration	Rectangle
Pixel Density	70 PPI
Aspect Ratio	4:3 (H:V)
Form Factor	Flat Rectangle Display
Dot Pitch	0.360×0.360 mm (H×V)
Pixel Pitch	0.360×0.360 mm (H×V)
Weight	175g
Surface	Glare (Haze 0%)
Active Area	115.18×86.38 mm (H×V)
Bezel Area	119.4×90.6 mm (H×V)
Outline Dimension	144×104.8 mm (H×V)
Outline Depth	9.0/13.2 (Typ./Max.) mm
Holes & Brackets	Rear mounting poles (4-Φ2.6)
Landscape or Portrait	Landscape type
Touch Panel	Without

KG057QV1CA-G020W Optical Features

Display Mode	STN, Blue mode (Negative), Transmissive
Brightness	260 cd/m² (Typ.)
Contrast Ratio	4 : 1 (Typ.) (Transmissive)
Display Color	Monochrome ()
Response Time	380/120 (Typ.)(Tr/Td)
Viewing Angle	45/45/20/40 (Typ.)(CR≥2) (L/R/U/D)
White color Chromaticity	Wx:0.310; Wy:0.330
Sunlight Readable	N

BOE BP080WX7-100 Optical Features

Display Mode : HFFS, Normally Black, Transmissive
Brightness : 0 cd/m²
Contrast Ratio : 900 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 55% NTSC (CIE1931)
Response Time : 24 (Typ.)(Tr+Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.301; Wy:0.321

Below are our other LCD panels stock for your easy reference:

Panel Model	Brand	Size	Resolution
C-51847NFJ-SLW-AFN	Kyocera		98.5×61
C-51847NFJ-SLW-AEN	Kyocera		98.5×61
C-51847NFJ-SLW-ADN	Kyocera		98.5×61
DMC-20261NY-LY-CME-CPN	Kyocera		116×37
DMC-20261NYJ-LY-CKE-CNN	Kyocera		116×37
DMC-16230NY-LY-EEE-EGN	Kyocera		122×44
DMC-16202NY-LY-BJE-BLN	Kyocera		84×45
C-51850NFJ-SLW-ADN	Kyocera		182×34.5
C-51505NFQJ-LG-AKN	Kyocera		116×37
C-51505NFQJ-LW-ALN	Kyocera		116×37
C-51505NFQJ-LB-AJN	Kyocera		116×37

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Plastic Trays Inside

2. Layers of cartons

3. Fragile Sign on top.

4. Can be customized.

Label:

Kontak Person: savvy,ren

Tel: +8613302928193
