NT156WHM-N32 15.6 inch resolution 1366×768 Surface Glare (Haze 0%) Contrast Ratio 500:1 (Typ.) Frequency 60Hz

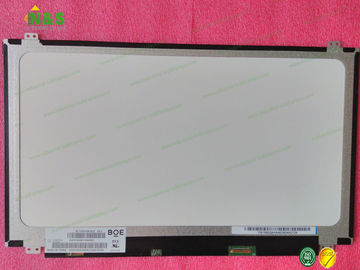

Gambar besar : NT156WHM-N32 15.6 inch resolution 1366×768 Surface Glare (Haze 0%) Contrast Ratio 500:1 (Typ.) Frequency 60Hz

Detail produk:

Place of Origin:	KOREA
Nama merek:	BOE
Sertifikasi:	ISO9001
Model Number:	NT156WHM-N32

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 Piece
Packaging Details:	Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time:	1-3 Working Days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	500PCS/DAY

Kontak

NT156WHM-N32 15.6 inch resolution 1366×768 Surface Glare (Haze 0%) Contrast Ratio 500:1 (Typ.) Frequency 60Hz

Deskripsi

Panel Type:	a-Si TFT-LCD	Surface:	Glare (Haze 0%)
Contrast Ratio:	500:1 (Typ.)	Panel Size:	15.6 inch
Resolution:	1366×768
Cahaya Tinggi:	industrial lcd screen , industrial lcd panel

NT156WHM-N32 15.6 inch resolution 1366×768 Surface Glare (Haze 0%) Contrast Ratio 500:1 (Typ.) Frequency 60Hz

NT156WHM-N32 Basic Information

Panel Model	NT156WHM-N32
Panel Brand	BOE
Descrition	a-Si TFT-LCD ,15.6 inch, 1366×768
Panel Type	a-Si TFT-LCD
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C
Remarks	eDP1.2

NT156WHM-N32 Mechanical Features

Dot Resolution	1366(RGB)×768 (WXGA)
Pixel Configuration	RGB Vertical Stripe
Pixel Density	100 PPI
Aspect Ratio	16:9 (H:V)
Form Factor	Flat Rectangle Display
Dot Pitch	0.084×0.252 mm (H×V)
Pixel Pitch	0.252×0.252 mm (H×V)
Weight	370g (Max.)
Surface	Glare (Haze 0%)
Active Area	344.232×193.536 mm (H×V)
Outline Dimension	359.5×223.8 mm (H×V)
Outline Depth	3.8 (Max.) mm
Shape Style	Flat (PCBA Flat, Depth 3.4~4.0mm)
Holes & Brackets	Face mounting holes (8 pcs) on up, down slugs
Landscape or Portrait	Landscape type
Touch Panel	Without

Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:

AUO LCD Screen
Samsung LCD Display
LG LCD Screen replacements
Sharp LCD panels &Chimei LCD Parts.
Innolux LCD Modules & BOE LCD Screen.

We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.

Here comes our other LCD panels stock for your easy reference:

Panel Model	Brand	Size	Resolution
MV236FHB-N10	BOE	24.0"	1920×1080
HR270QH3-100	BOE	27.0"	2560×1440
BF045WVQ-401	BOE	4.5"	480×854
BV055HDE-N40	BOE	5.5"	720×1280
TV080WXB-NV0	BOE	8.0"	800×1280
AV080WVB-NW2	BOE	8.0"	800×480
BV050HDE-N47	BOE	5.0"	720×1280
BP096WX2-100	BOE	9.6"	800×1280
HV320WHB-N82	BOE	31.5"	1366×768
HV550QUB-B05	BOE	55"	3840×2160
BV047SQE-N40	BOE	4.7"	540×960
