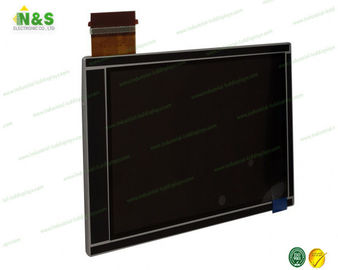

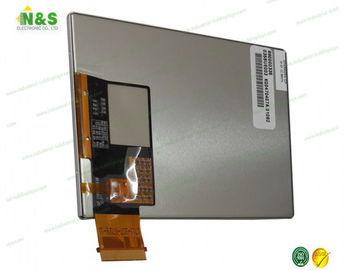

Normally White TD035SHED1 3.5 inch TPO LCD displays Active Area 53.28×71.04 mm Outline 64×85 mm new and original
TD035SHED1 Basic Information
| Panel Model |
TD035SHED1 |
| Panel Brand |
TPO |
| Descrition |
LTPS TFT-LCD ,3.5 inch, 480×640 |
| Panel Type |
LTPS TFT-LCD |
| Operating Temperature |
-10 ~ 60 °C |
| Storage Temperature |
-20 ~ 70 °C |
TD035SHED1 Mechanical Features
| Dot Resolution |
480(RGB)×640 (VGA) |
| Pixel Configuration |
RGB Vertical Stripe |
| Pixel Density |
228 PPI |
| Aspect Ratio |
3:4 (H:V) |
| Form Factor |
Flat Rectangle Display |
| Dot Pitch |
0.037×0.111 mm (H×V) |
| Pixel Pitch |
0.111×0.111 mm (H×V) |
| Weight |
TBD |
| Active Area |
53.28×71.04 mm (H×V) |
| Bezel Area |
56.4×74.4 mm (H×V) |
| Outline Dimension |
64×85 mm (H×V) |
| Outline Depth |
3.35 (Max.) mm |
| Holes & Brackets |
left side 2 in 1 FPC |
| Landscape or Portrait |
Portrait type |
| Touch Panel |
Without |
TD035SHED1 Optical Features
| Display Mode |
TN, Normally White, Transflective |
| Brightness |
170 cd/m² (Typ.) |
| Contrast Ratio |
8:1 (Typ.) (Reflective) |
| Display Color |
262K (6-bit) |
| Color Gamut |
37% NTSC (CIE1931) |
| Response Time |
35 (Typ.)(Tr+Td) |
| Viewing Angle |
80/80/80/70 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity |
Wx:0.310; Wy:0.330 |
| White Variation |
1.25/1.43 (Typ./max.)(9 points) |
| Reflectance Ratio |
3.0/5.0% (Min./Typ.) |
| Sunlight Readable |
Y |
