C0283QGLD-T 2.8 inch Industrial LCD Displays Active Area 43.2×57.6 mm Outline 49.1×67.3 mm new and original in stock

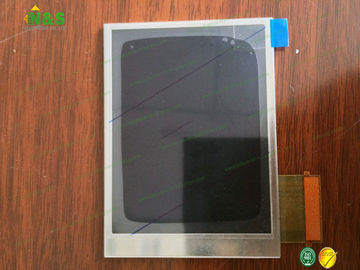

Gambar besar : C0283QGLD-T 2.8 inch Industrial LCD Displays Active Area 43.2×57.6 mm Outline 49.1×67.3 mm new and original in stock

Detail produk:

Place of Origin:	KOREA
Nama merek:	CMEL
Sertifikasi:	ISO9001
Model Number:	C0283QGLD-T

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 Piece
Packaging Details:	Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time:	2-3 working days after payment confirmation
Payment Terms:	T/T, Paypal, Western Union, MoneyGram
Supply Ability:	100 PCS / DAY

Kontak

C0283QGLD-T 2.8 inch Industrial LCD Displays Active Area 43.2×57.6 mm Outline 49.1×67.3 mm new and original in stock

Deskripsi

Panel Brand:	CMEL	Panel Size:	2.8 inch
Resolution:	240×320	Outline:	49.1×67.3 mm
Active Area:	43.2×57.6 mm
Cahaya Tinggi:	industrial touch screen display , industrial lcd screen

C0283QGLD-T 2.8 inch Industrial LCD Displays Active Area 43.2×57.6 mm Outline 49.1×67.3 mm new and original in stock

C0283QGLD-T Basic Information

Panel Model	C0283QGLD-T
Panel Brand	CMEL
Descrition	AM-OLED ,2.8 inch, 240×320
Panel Type	AM-OLED
Operating Temperature	-20 ~ 60 °C
Storage Temperature	-40 ~ 80 °C

C0283QGLD-T Mechanical Features

Dot Resolution	240(RGB)×320 (QVGA)
Pixel Configuration	RGB Vertical Stripe
Pixel Density	141 PPI
Aspect Ratio	3:4 (H:V)
Form Factor	Flat Rectangle Display
Pixel Pitch	0.180×0.180 mm (H×V)
Weight	16g (Typ.)
Active Area	43.2×57.6 mm (H×V)
Bezel Area	44.4×58.8 mm (H×V)
Outline Dimension	49.1×67.3 mm (H×V)
Outline Depth	1.75/1.9 (Typ./Max.) mm
Landscape or Portrait	Portrait type
Touch Panel	Without

C0283QGLD-T Optical Features

Brightness	200 cd/m² (Typ.)
Contrast Ratio	10000 : 1 (Typ.) (Transmissive)
Display Color	65K/262K ()
Color Gamut	73% NTSC (CIE1931)
Response Time	0.05/0.05 (Max.)(Tr/Td)
Viewing Angle	85/85/85/85 (Typ.)(CR＞10) (L/R/U/D)
White color Chromaticity	Wx:0.310; Wy:0.330
Sunlight Readable	N

FAQ

Q1: How do we place an order?

A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.

Q2: How do we make the payment?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: What's the delivery time?

A3: The delivery time is normally 1-3 working days after payment.

Q4: How would the goods be shipped?

A4: We ship via DHL, UPS, TNT and others.

Packaging & Delivery

Packaging Details:

Safey package

Plastic trays inside

2 layes of cartons

Fragile sign on top

Can be customize 3.5 inch spare parts auo used lcd panel

Delivery Detail: 1-3 Working Days

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
