12.1 inch N121X5-L04 TFT LCD Module resolution 1024×768 Outline 261×198×5 mm Frequency 60Hz

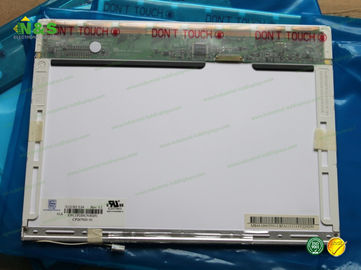

Gambar besar : 12.1 inch N121X5-L04 TFT LCD Module resolution 1024×768 Outline 261×198×5 mm Frequency 60Hz

Detail produk:

Place of Origin:	KOREA
Nama merek:	CMO
Sertifikasi:	ISO9001
Model Number:	N121X5-L04

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1
Packaging Details:	Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time:	1-3 Working Days
Payment Terms:	T/T, Western Union, MoneyGram, T/T
Supply Ability:	500PCS/DAY

Kontak

12.1 inch N121X5-L04 TFT LCD Module resolution 1024×768 Outline 261×198×5 mm Frequency 60Hz

Deskripsi

Panel Type:	a-Si TFT-LCD	Panel Size:	12.1 inch
Resolution:	1024×768	Outline:	261×198×5 mm
Contrast Ratio:	500:1 (Typ.)	Frequency:	60Hz
Cahaya Tinggi:	industrial touch screen display , industrial lcd panel

12.1 inch N121X5-L04 TFT LCD Module resolution 1024×768 Outline 261×198×5 mm Frequency 60Hz

Our Promise for our LCD Panels:

You will get reply within 24 Hours and:

Year warranty

Day shipping

Return

After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare

Here comes our other LCD panels stock for your easy reference:

Panel Model	Brand	Size	Resolution
H497DAN02.0	AUO	5.0"	1080×1920
H495TAN01.1	AUO	5.0"	720×1280
LK315T3HC1K	SHARP	31.5"	1366×768
ST2751A01-6	CSOT	27.5"	1366×768
H496TAN01.0	AUO	5.0"	720×1280
H545QAN01.0	AUO	5.5"	1440×2560
TM050JYSP01	Tianma	5.0"	720×1280
LH500M01-SH02	LG Display	5.0"	540×960
LH500WX5-SH01	LG Display	5.0"	720×1280
LH500WX9-SH01	LG Display	5.0"	720×1280
P089DCZ-3A1	Innolux	8.9"	800×1280
BS050HDE-N41-6Q00	BOE	5.0"	720×1280

Pls contact to us for more stock information: salespm@nselectronic.com.hk

N121X5-L04 Basic Information

Panel Model	N121X5-L04
Panel Brand	CMO
Descrition	a-Si TFT-LCD ,12.1 inch, 1024×768
Panel Type	a-Si TFT-LCD
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

N121X5-L04 Mechanical Features

Dot Resolution	1024(RGB)×768 (XGA)
Pixel Configuration	RGB Vertical Stripe
Pixel Density	105 PPI
Aspect Ratio	4:3 (H:V)
Form Factor	Flat Rectangle Display
Dot Pitch	0.080×0.240 mm (H×V)
Pixel Pitch	0.240×0.240 mm (H×V)
Weight	240g (Typ.)
Surface	Antiglare (Haze 25%), Hard coating (3H)
Active Area	245.76×184.32 mm (H×V)
Bezel Area	250.5×188.9 mm (H×V)
Outline Dimension	261×198 mm (H×V)
Outline Depth	4.7/5.0 (Typ./Max.) mm
Holes & Brackets	Side mounting holes (6-M2) on left, right bezel
Landscape or Portrait	Landscape type
Touch Panel	Without

N121X5-L04 Optical Features

Display Mode	TN, Normally White, Transmissive
Brightness	175 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (Transmissive)
Display Color	262K (6-bit)
Color Gamut	45% NTSC (CIE1931)
Response Time	5/11 (Typ.)(Tr/Td)
Viewing Angle	45/45/20/45 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction	6 o'clock
White color Chromaticity	Wx:0.313; Wy:0.329
White Variation	1.25 (Max.)(5 points)
Sunlight Readable	N
