New and original LTM09C362F TFT LCD Module 8.9 inch with Normally White 1024×600 resolution

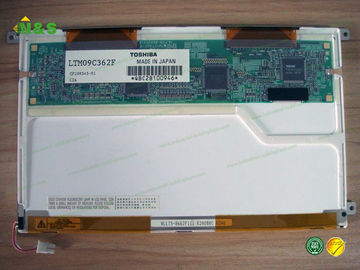

Gambar besar : New and original LTM09C362F TFT LCD Module 8.9 inch with Normally White 1024×600 resolution

Detail produk:

Place of Origin:	KOREA
Nama merek:	Toshiba
Sertifikasi:	ISO9001
Model Number:	LTM09C362F

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1
Packaging Details:	Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time:	1-3 Working Days
Payment Terms:	Western Union, T/T, MoneyGram, T/T
Supply Ability:	500PCS/DAY

Kontak

New and original LTM09C362F TFT LCD Module 8.9 inch with Normally White 1024×600 resolution

Deskripsi

Panel Type:	LTPS TFT-LCD	Panel Size:	8.9 inch
Resolution:	1024×600	Active Area:	195.072×113.4 mm
Display Colors:	262K (6-bit)	Frequency:	60Hz
Cahaya Tinggi:	industrial lcd screen , industrial lcd panel

New and original LTM09C362F TFT LCD Module 8.9 inch with Normally White 1024×600 resolution

LTM09C362F Basic Information

Panel Model	LTM09C362F
Panel Brand	Toshiba Matsushita
Descrition	LTPS TFT-LCD ,8.9 inch, 1024×600
Panel Type	LTPS TFT-LCD
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

LTM09C362F Mechanical Features

Dot Resolution	1024(RGB)×600 (WSVGA)
Pixel Configuration	RGB Vertical Stripe
Pixel Density	133 PPI
Aspect Ratio	17:10 (H:V)
Form Factor	Flat Rectangle Display
Dot Pitch	0.0635×0.1890 mm (H×V)
Pixel Pitch	0.1905×0.1890 mm (H×V)
Active Area	195.072×113.4 mm (H×V)
Holes & Brackets	Face mounting holes (3-Φ2.8) on left and right brackets
Landscape or Portrait	Landscape type

LTM09C362F Optical Features

Display Mode	TN, Normally White, Transmissive
Display Color	262K (6-bit)
Sunlight Readable	N

What’s our advantage compared with other suppliers?

(1). Before shipment, we will test every LCD Screen and ensure the quality.

(2). we provide high quality lcd panels for customers all over the world.

(3) .We have DBS, ISO9001 Certifications for our Panels.

(4) .Excellent service on before-sale, on-sale and after-sale.

Packaging & Delivery

· Delivery Lead Time :2~3 weeks

· Minimum Order :1 pcs LCD Panel

· Supply Ability :100 PCS / Per Day

Here comes our other LCD panels stock for your easy reference:

Panel Model	Brand	Size	Resolution
F060A09-604	Innolux	6.0"	720×1280
LH470WX3-SH02	LG Display	4.7"	720×1280
LH600WX1-SH01	LG Display	6.0"	720×1280
H426TAN02.0	AUO	4.3"	720×1280
LC490EQJ-SGK1	LG Display	49"	3840×2160
LC420EQJ-SGE2	LG Display	42"	3840×2160
LC650EQK-FGK5	LG Display	65"	3840×2160
CLAG080WQ05 AX	CPT	8.0"	800×1280
TT070WSQ-N10	BOE	7.0"	1024×600
C097SNX1 R1	IVO	9.7"	1024×768

Pls contact to us for more stock information: salespm@nselectronic.com.hk
