Normally White 12.1 inch LTD121KA0S TFT LCD Module Toshiba with 245.76×184.32 mm Active Area new and original

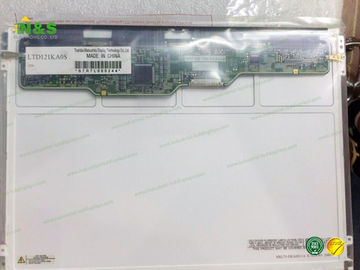

Gambar besar : Normally White 12.1 inch LTD121KA0S TFT LCD Module Toshiba with 245.76×184.32 mm Active Area new and original

Detail produk:

Place of Origin:	KOREA
Nama merek:	Toshiba
Sertifikasi:	ISO9001
Model Number:	LTD121KA0S

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1
Packaging Details:	Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time:	1-3 Working Days
Payment Terms:	Western Union, T/T, MoneyGram, T/T
Supply Ability:	500PCS/DAY

Kontak

Normally White 12.1 inch LTD121KA0S TFT LCD Module Toshiba with 245.76×184.32 mm Active Area new and original

Deskripsi

Panel Type:	LTPS TFT-LCD	Panel Size:	12.1 inch
Resolution:	1024×768	Surface:	Antiglare
Contrast Ratio:	150:1 (Min.)	Display Colors:	262K (6-bit)
Cahaya Tinggi:	industrial lcd screen , industrial lcd panel

Normally White 12.1 inch LTD121KA0S TFT LCD Module Toshiba with 245.76×184.32 mm Active Area new and original

Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!

To get the latest prices, pls feel free to contact us.
1. Samples charge: According to the model. Pls contact us to get details.
2. Samples time:1 day forstock models
Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.

LTD121KA0S Basic Information

Panel Model	LTD121KA0S
Panel Brand	Toshiba Matsushita
Descrition	LTPS TFT-LCD ,12.1 inch, 1024×768
Panel Type	LTPS TFT-LCD
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C
Remarks	Digitizer Easy Insertion & Assembly Solution

LTD121KA0S Mechanical Features

Dot Resolution	1024(RGB)×768 (XGA)
Pixel Configuration	RGB Vertical Stripe
Pixel Density	105 PPI
Aspect Ratio	4:3 (H:V)
Form Factor	Flat Rectangle Display
Dot Pitch	0.080×0.240 mm (H×V)
Pixel Pitch	0.240×0.240 mm (H×V)
Weight	280g (Typ.)
Surface	Antiglare
Active Area	245.76×184.32 mm (H×V)
Bezel Area	250.4×188.9 mm (H×V)
Outline Dimension	269×199 mm (H×V)
Outline Depth	6.5 (Max.) mm
Holes & Brackets	Face mounting holes (4-Φ3.0) on left, right bezel
Landscape or Portrait	Landscape type
Touch Panel	Without

LTD121KA0S Optical Features

Display Mode	TN, Normally White, Transmissive
Brightness	170 cd/m2 (Typ.)
Contrast Ratio	150 : 1 (Min.) (Transmissive)
Display Color	262K (6-bit)
Response Time	50/50 (Max.)(Tr+Td)
Sunlight Readable	N

Here comes our other LCD panels stock for your easy reference:

Panel Model	Brand	Size	Resolution
B075XTN01.0	AUO	7.5"	768×1024
TV070WSU-N40	BOE	7.0"	600×1024
LS320PUWTH	PANDA	31.5"	1366×768
TT4851D01-4	CSOT	49"	3840×2160
ST4761B01-6	CSOT	48"	1920×1080
LC420EGY-SGM1	LG Display	42"	3840×2160
H466TAN01.4	AUO	4.7"	720×1280
BF045WVE-400	BOE	4.5"	480×854
LC430DUY-SHA1	LG Display	43"	1920×1080

Pls contact to us for more stock information: salespm@nselectronic.com.hk
