New and original M101NWWB R3 10.1 inch, 1280×800 TFT LCD MODULE Surface Glare (Haze 0%), Hard coating (3H)

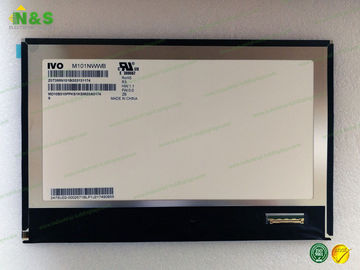

Gambar besar : New and original M101NWWB R3 10.1 inch, 1280×800 TFT LCD MODULE Surface Glare (Haze 0%), Hard coating (3H)

Detail produk:

Place of Origin:	KOREA
Nama merek:	IVO
Sertifikasi:	ISO9001
Model Number:	M101NWWB R3

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1
Packaging Details:	Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time:	1-3 Working Days
Payment Terms:	Western Union, T/T, MoneyGram, T/T
Supply Ability:	500PCS/DAY

Kontak

New and original M101NWWB R3 10.1 inch, 1280×800 TFT LCD MODULE Surface Glare (Haze 0%), Hard coating (3H)

Deskripsi

Panel Type:	a-Si TFT-LCD	Panel Size:	10.1 inch
Resolution:	1280×800	Contrast Ratio:	800:1 (Typ.)
Frequency:	60Hz	Input Voltage:	3.3V (Typ.)
Cahaya Tinggi:	industrial touch screen display , industrial lcd screen

New and original M101NWWB R3 10.1 inch, 1280×800 TFT LCD MODULE Surface Glare (Haze 0%), Hard coating (3H)

M101NWWB R3 Basic Information

Panel Model	M101NWWB R3
Panel Brand	IVO
Descrition	a-Si TFT-LCD ,10.1 inch, 1280×800
Panel Type	a-Si TFT-LCD
Operating Temperature	-20 ~ 70 °C
Storage Temperature	-30 ~ 80 °C

Our Advantage

As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:

AUO LCD Screen
Samsung LCD Display
LG LCD Screen replacements
Sharp LCD panels &Chimei LCD Parts.
Innolux LCD Modules & BOE LCD Screen.

M101NWWB R3 Mechanical Features

Dot Resolution	1280(RGB)×800 (WXGA)
Pixel Configuration	RGB Vertical Stripe
Pixel Density	149 PPI
Aspect Ratio	16:10 (H:V)
Form Factor	Flat Rectangle Display
Dot Pitch	0.0565×0.1695 mm (H×V)
Pixel Pitch	0.1695×0.1695 mm (H×V)
Weight	160g (Max.)
Surface	Glare (Haze 0%), Hard coating (3H)
Active Area	216.96×135.6 mm (H×V)
Outline Dimension	229.46×149.1 mm (H×V)
Outline Depth	2.5/4.56 (Typ./Max.) mm
Landscape or Portrait	Landscape type
Touch Panel	Without

M101NWWB R3 Optical Features

Display Mode	IPS, Normally Black, Transmissive
Brightness	350 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (Transmissive)
Display Color	16.7M (8-bit)
Color Gamut	45% NTSC (CIE1931)
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction	Symmetry
White color Chromaticity	Wx:0.313; Wy:0.329
White Variation	1.33/1.43 (Typ./Max.)(13 points)
Sunlight Readable	N

What is our advantage?

Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.

Delivery Quantity: 50-100 cartons shipped by DHL every week

Supply Ability: 100 pcs Panels per day.

Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)

Warranty: 12 months.

Below are our other LCD panels stock for your easy reference:

Panel Model	Brand	Size	Resolution
C023SN21-0	IVO	2.3"	240×320
C039SWP4-0	IVO	4.0"	480×800
C039SWN1-1	IVO	4.0"	320×480
F101NWN7-0	IVO	10.1"	1920×1200
C043GW32 R1	IVO	4.3"	480×272
C045SWY1-4	IVO	4.5"	480×854
C050SWY7-1	IVO	5.0"	480×854
C050SWY7-0	IVO	5.0"	480×854
C022SN91-0	IVO	2.2"	176×220
F054SWN1-1	IVO	5.4"	540×960
C060SWZ1-1	IVO	6.0"	540×960
C050SWZ3-0	IVO	5.0"	540×960

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
