Detail produk:
|
Ukuran panel: | 6,5 inci | Resolusi: | 640 (RGB) × 480 (VGA) |
---|---|---|---|
Tampilan Modetion: | TN, Biasanya Putih, Penularan | Aktif di Area: | 132,48 × 99,36 mm |
Garis besar:: | 153 × 118 mm | Panel Type: | a-Si TFT-LCD, LCM |
Cahaya Tinggi: | nec tft lcd,layar lcd nec |
6.5 Inch NL6448BC20-18 layar lcd layar datar NEC dengan 132,48 × 99,36 mm Area Aktif
Spesifikasi NL6448BC20-18
Ukuran Panel: | 6,5 inci |
---|---|
Resolusi Dot: | 640 (RGB) × 480 (VGA) |
Pixel Configuration: | Garis Vertikal RGB |
Kerapatan piksel : | 122 PPI |
Rasio Aspek: | 4: 3 (H: V) |
Faktor Bentuk: | Tampilan Persegi Panjang Datar |
Dot Pitch: | 0,069 × 0,207 mm (H × V) |
Pitch Piksel: | 0,207 × 0,207 mm (H × V) |
Berat: | 205 / 215g (Typ./Max.) |
Permukaan: | Antiglare, Lapisan keras (2H) |
Area Aktif: | 132,48 × 99,36 mm (H × V) |
Area Bingkai: | 135,9 × 102,8 mm (H × V) |
Dimensi Garis Besar: | 153 × 118 mm (H × V) |
Kedalaman Garis Besar: | 10,5 ± 0,5 mm |
Lubang & Kurung: | Lubang pemasangan sisi (4-M2) |
Lanskap atau Potret: | Tipe lanskap |
Panel sentuh : | Tanpa |
Mode tampilan : | TN, Biasanya Putih, Transmissive |
---|---|
Kecerahan: | 400 cd / m² (Typ.) |
Rasio Kontras: | 600: 1 (Typ.) (Transmissive) |
Warna Tampilan: | 262K (6-bit) |
Gamut Warna: | 40% NTSC (CIE1931) |
Waktu merespon : | 6/19 (Typ.) (Tr / Td) |
Sudut Pandang: | 80/80/80/60 (Biasa.) (CR≥10) (L / R / U / D) |
Melihat Arah: | jam 6 |
Kromatisitas warna putih: | Wx: 0,313; Wy: 0,329 |
Variasi Putih: | 1.25 / 1.40 (Typ./Max.)(5 poin) |
Sunlight Readable: | N |
Keuntungan Kami
Sebagai salah satu dari beberapa komponen elektronik & distributor panel LCD terbesar di Cina, kami ahli dalam banyak panel LCD bermerek, termasuk tetapi tidak terbatas pada:
Mengapa Memilih AS:
1. Balasan secepatnya dalam waktu 12 jam.
2. Memahami pertanyaan dalam bahasa apa pun.
3. Produk dengan kualitas terbaik.
4. Harga yang sangat kompetitif.
5. Pengalaman 6 tahun dalam penggantian LCD Layar industri.
6. Distributor merek-merek terkenal Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi dan banyak lagi.
7. Layanan purna jual yang luar biasa.
Di bawah ini adalah stok panel LCD kami untuk referensi mudah Anda:
Model Panel | Merek | Ukuran | Resolusi |
ED097TC1 | E Ink | 9,7 " | 1200 × 825 |
ET047TC1 | E Ink | 4,7 " | 540 × 960 |
ET040TC1 | E Ink | 4,0 " | 480 × 720 |
ED043WH1 | E Ink | 4,3 " | 480 × 800 |
ED043WC1 | E Ink | 4,3 " | 480 × 800 |
Kami juga memiliki panel LCD industri lainnya, pls hubungi kami untuk informasi lebih lanjut: salespm@nselectronic.com.hk

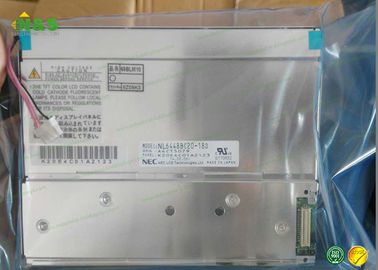

Gambar NL6448BC20-18
